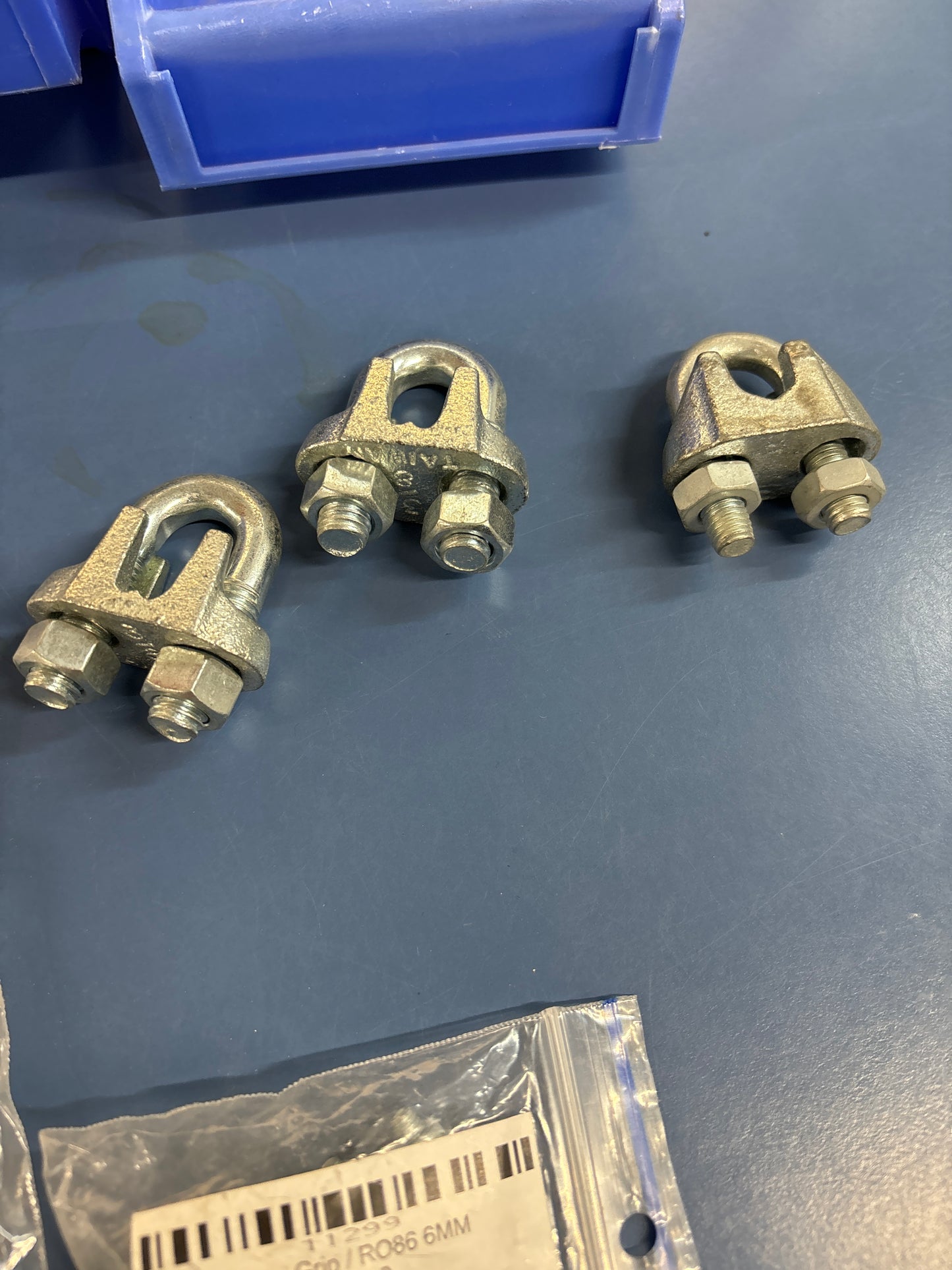

Wire Rope Grips

• High-Strength Construction: Manufactured from galvanized or stainless steel, providing excellent durability and resistance to corrosion, suitable for both indoor and outdoor use.
• Secure Fastening: The U-bolt and saddle design ensures a tight and secure grip on wire ropes, preventing slippage under load.
• Versatile Application: Ideal for creating eye terminations, securing loads, and forming wire rope assemblies in construction, marine, and industrial settings.
• Easy Installation: Simple to install with standard tools; the nuts can be easily tightened to achieve a secure connection.
• Compliance with Standards: Meets industry standards such as DIN 741, ensuring reliability and safety in critical applications.

Material Options:

Galvanized Steel: Offers good corrosion resistance for general applications.

Stainless Steel (AISI 304 or 316): Provides superior corrosion resistance, ideal for marine and high-moisture environments.

Available Sizes: Suitable for wire rope diameters ranging from 3mm to 25mm.

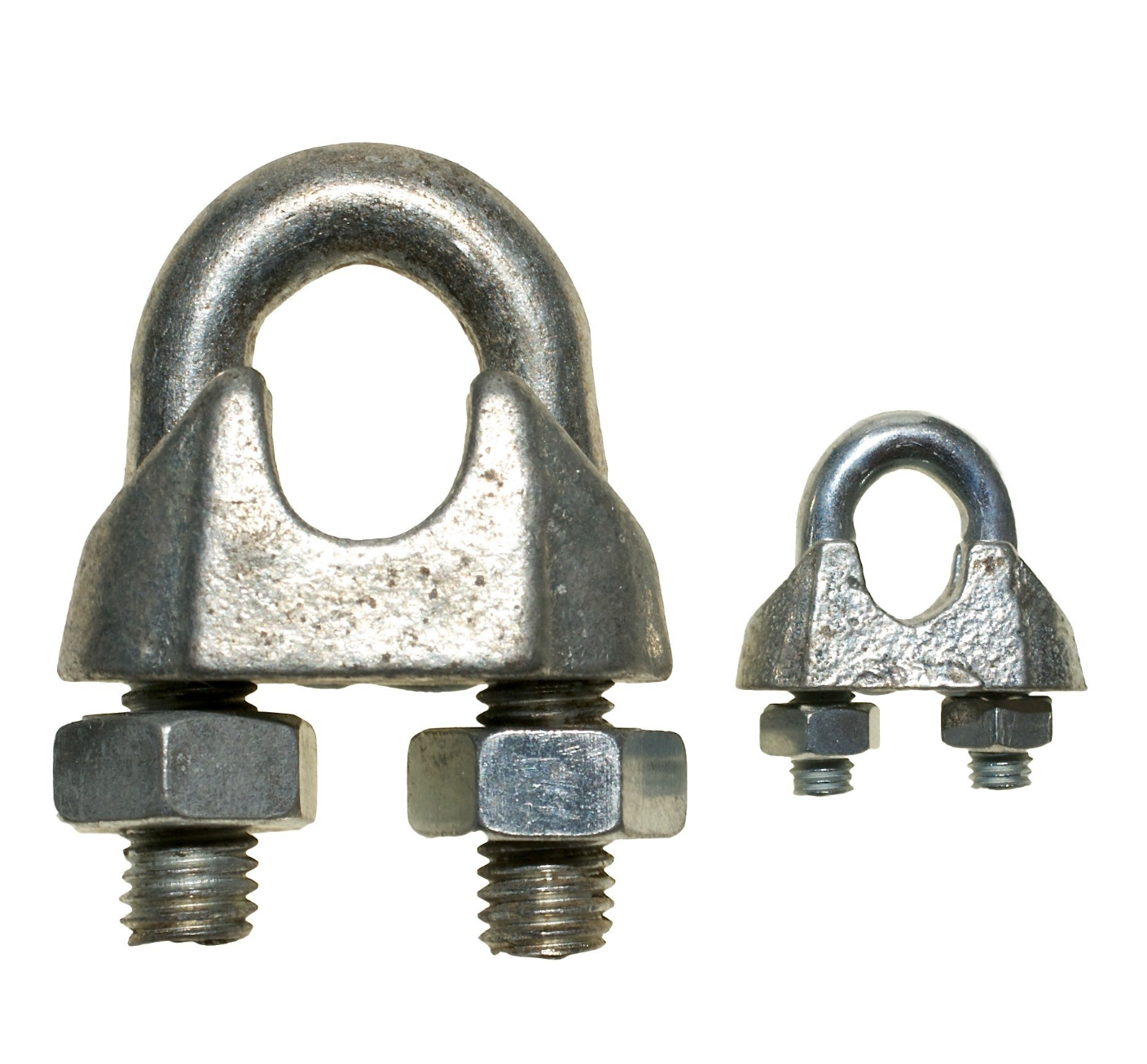

Design: Consists of a U-shaped bolt, a forged saddle, and two hex nuts.

Finish:

Galvanized: Hot-dip galvanized for enhanced corrosion resistance.

Stainless Steel: Polished finish for aesthetic appeal and additional protection.

Standards Compliance: Conforms to DIN 741 specifications for wire rope clamps.

Usage Note: It is recommended to use at least three clamps per termination for wire ropes up to 6mm in diameter, and more for larger diameters, spaced approximately six rope diameters apart.
