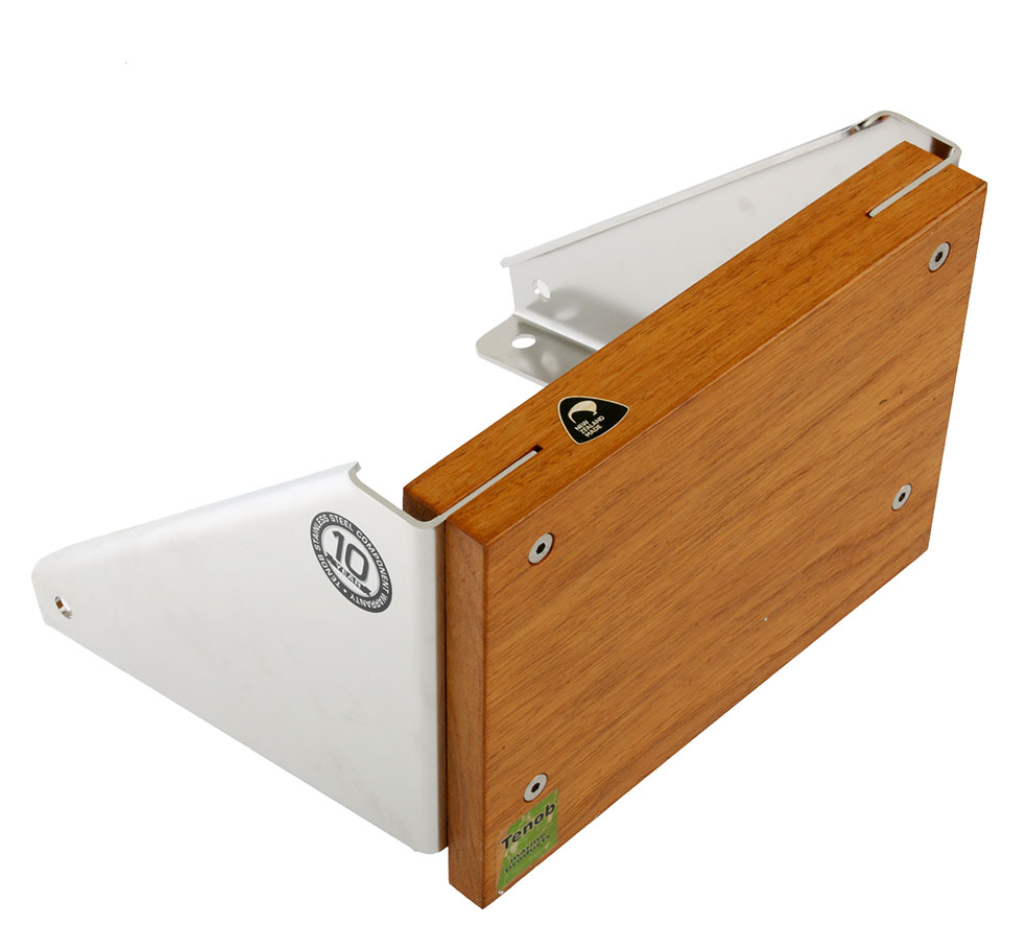

Outboard Bracket - Fixed Mount, Platform OU08

High-Quality Construction: Crafted from 3mm marine-grade stainless steel for superior strength and corrosion resistance.

Fixed Platform Design: Provides a stable and secure mounting point for auxiliary outboard motors.

Varnished Hardwood Mounting Board: Features a durable timber board finished in acrylic varnish, offering a solid attachment surface for the motor.

Easy Installation: Pre-drilled mounting holes facilitate straightforward installation on your boat's platform.

Model: OU08

Material: 3mm marine-grade stainless steel with varnished hardwood mounting board.

Dimensions:

Width: 280mm

Height: 190mm

Length (fore-aft): 245mm

Mounting Platform Depth Required: Minimum 210mm

Height from Top of Timber to Mounting Platform: 175mm

Maximum Motor Capacity:

Standard Shaft Motors: Up to 25hp (19kW)

Long Shaft Motors: Up to 20hp

Mounting Hole Spacing:

Horizontal: 190mm (center to center)

Vertical: 123mm (center to center)

Hole Diameter: 11mm (suitable for 10mm (3/8") mounting bolts)
