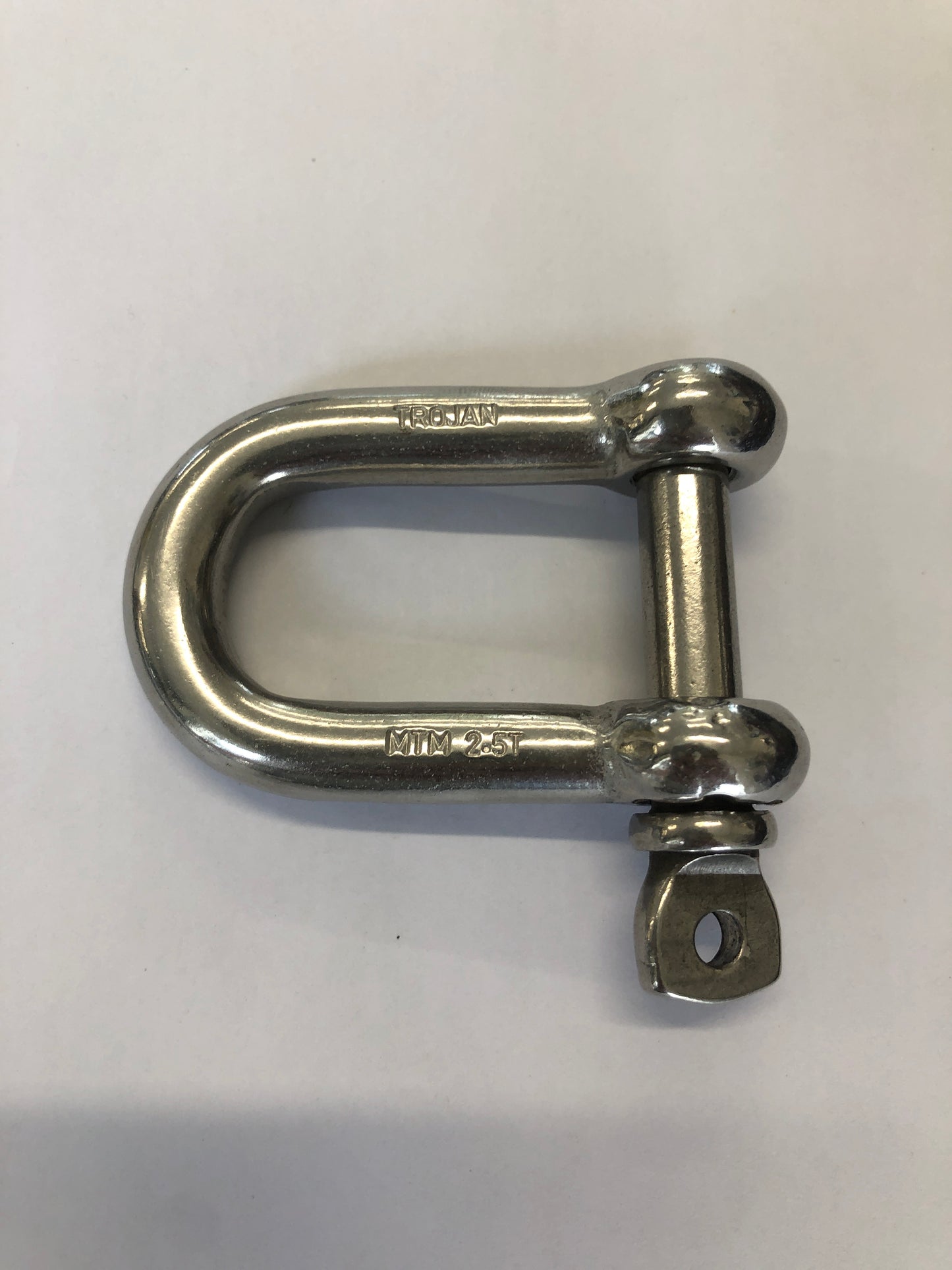

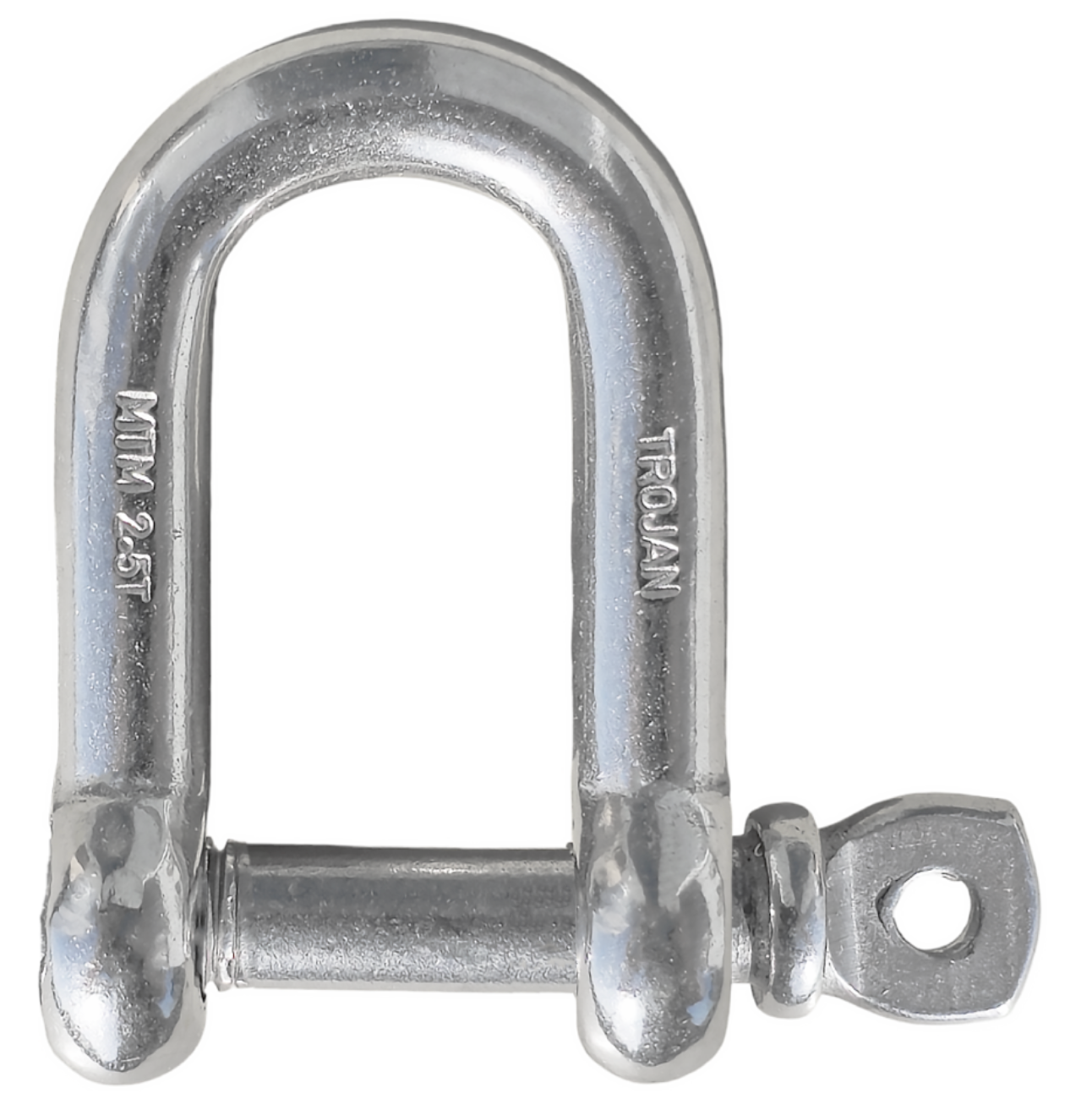

Trojan Stainless Steel D Shackle 10mm with Captive Pin 2.5 Tonne

• Captive Pin Design: The pin is securely connected to the shackle body, preventing accidental loss and ensuring safety during operations.
• High-Quality Material: Made from grade 316 stainless steel, offering excellent corrosion resistance and longevity in marine environments.
• Robust Load Capacity: Working load limit (WLL) of 1040 kg and breaking load of 5200 kg, suitable for demanding applications.
• Versatile Applications: Ideal for marine rigging, towing, and other industrial uses where secure connections are critical.
• Single-Handed Operation: Designed for easy handling and operation, enhancing user convenience.

Model Number: T820015
Diameter: 10 mm
Working Load Limit (WLL): 1040 kg
Breaking Load: 5200 kg
Weight: Approximately 114 grams
Material: Grade 316 stainless steel
Dimensions:
A (Width): 33 mm
B (Height): 20 mm
C (Pin Diameter): 11 mm
D (Inner Width): 21 mm
E (Pin Length): 9 mm
F (Overall Length): 58 mm
G (Overall Height): 53 mm
