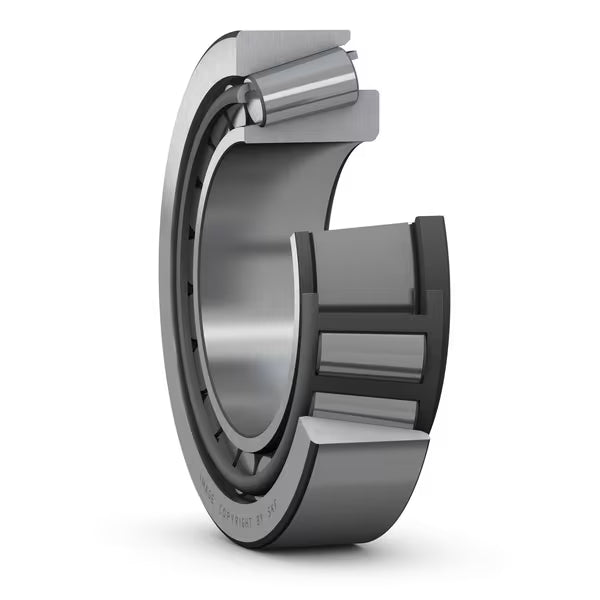

Single Row Tapered Bearing 15123/15245

Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

• High radial and axial load carrying capacity
• Accommodate axial loads in one direction
• Low friction and long service life
• Separable and interchangeable components

15123/15245

Inside Diameter: 1.2500" (31.750mm)
Outside Diameter: 2.4409" (62.000mm)
Width Dimension:18.161mm
Shaft Fillet Radii: Special
Bearing Material: Steel
