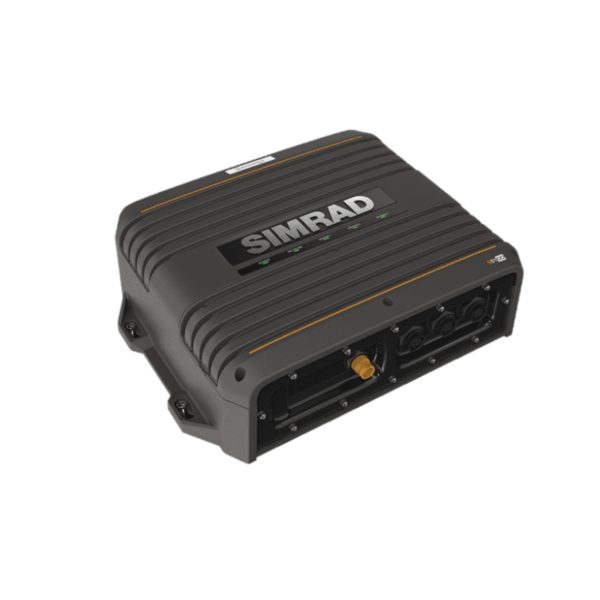

Simrad S5100 High-Performance Chirp Transducer Sonar Module

The S5100 high-performance CHIRP sonar module features three fully independent channels able to deliver high-resolution sonar coverage across multiple depth ranges, precision-focused for offshore sportfishing anglers. Simultaneous split-screen viewing capability puts you in complete control of the water column, while advanced processing technology allows you to fish with noise-free clarity at all depth ranges without ever losing bottom depth tracking. Mix and match your favourite transducer coverage and transmit power for wide and narrow beam-widths to reveal more fish, detecting small and tightly spaced fish and identifying thermoclines; or adjust specific CHIRP frequencies from 28 to 250 kHz to precisely target specific depths producing big, crisp arches with clear target separation.

Key Features:

Three fully independent sonar channels deliver high-resolution coverage.
Noise-free clarity at all depth ranges.
Combine any three frequency ranges to target multiple depths, including Ultra-Low, Low, Medium, or High CHIRP.
Compatible with wide-angle CHIRP transducers for greater coverage of the water column.
Simultaneous split-screen viewing of multiple depth ranges on your display.
Maximum depth of 3,000 metres / 10,000 feet (transducer dependent).
Easy to install with three plug-and-play 9-pin transducer connectors.
Compatible with Simrad NSS evo3 and NSS evo2 multifunction displays, NSO evo2 systems, and S2000-series fish finders.
