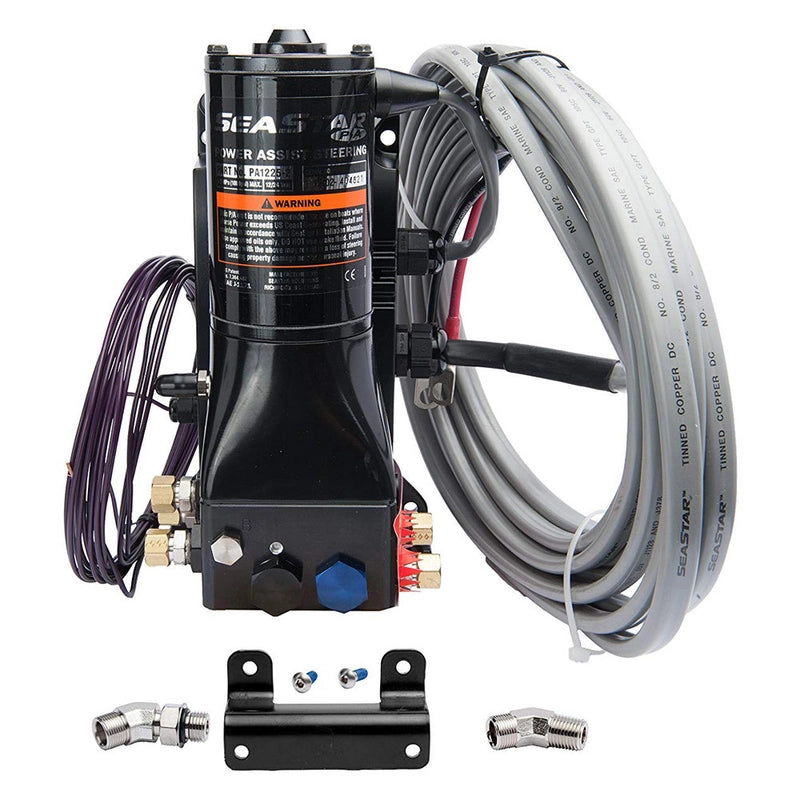

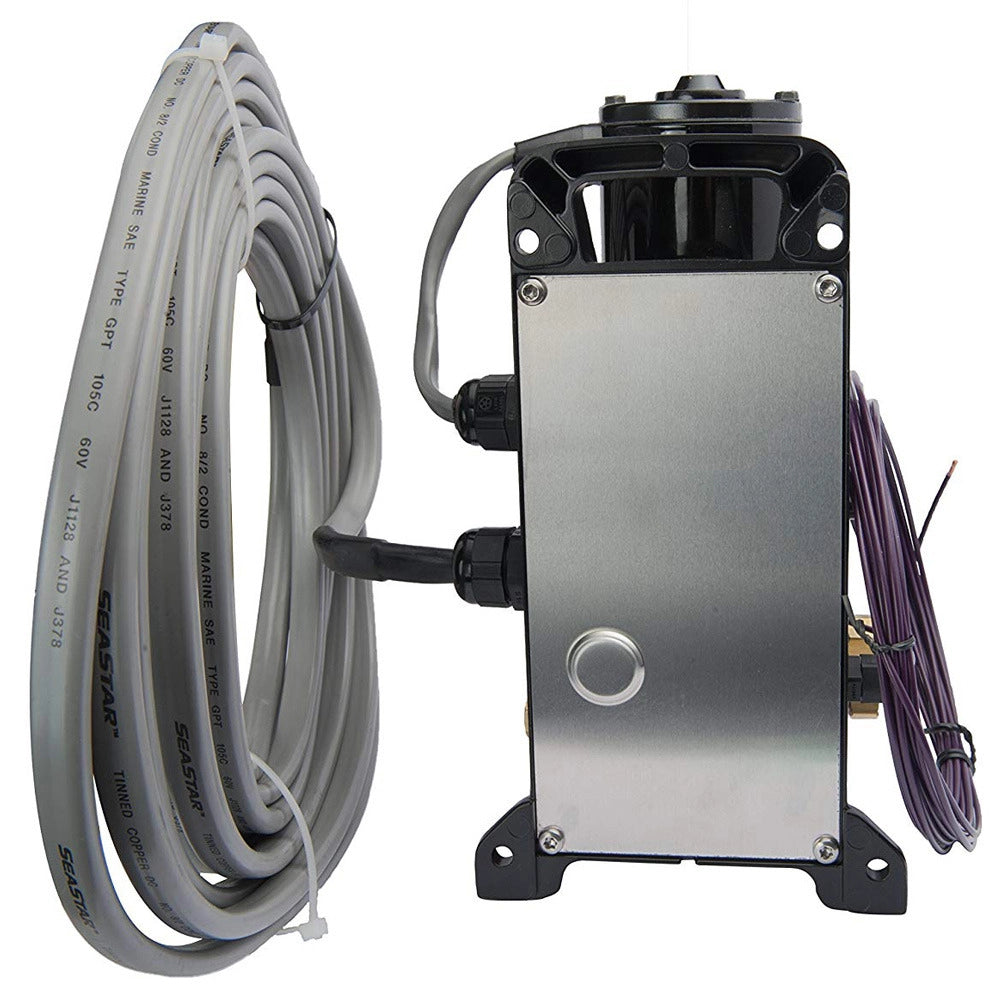

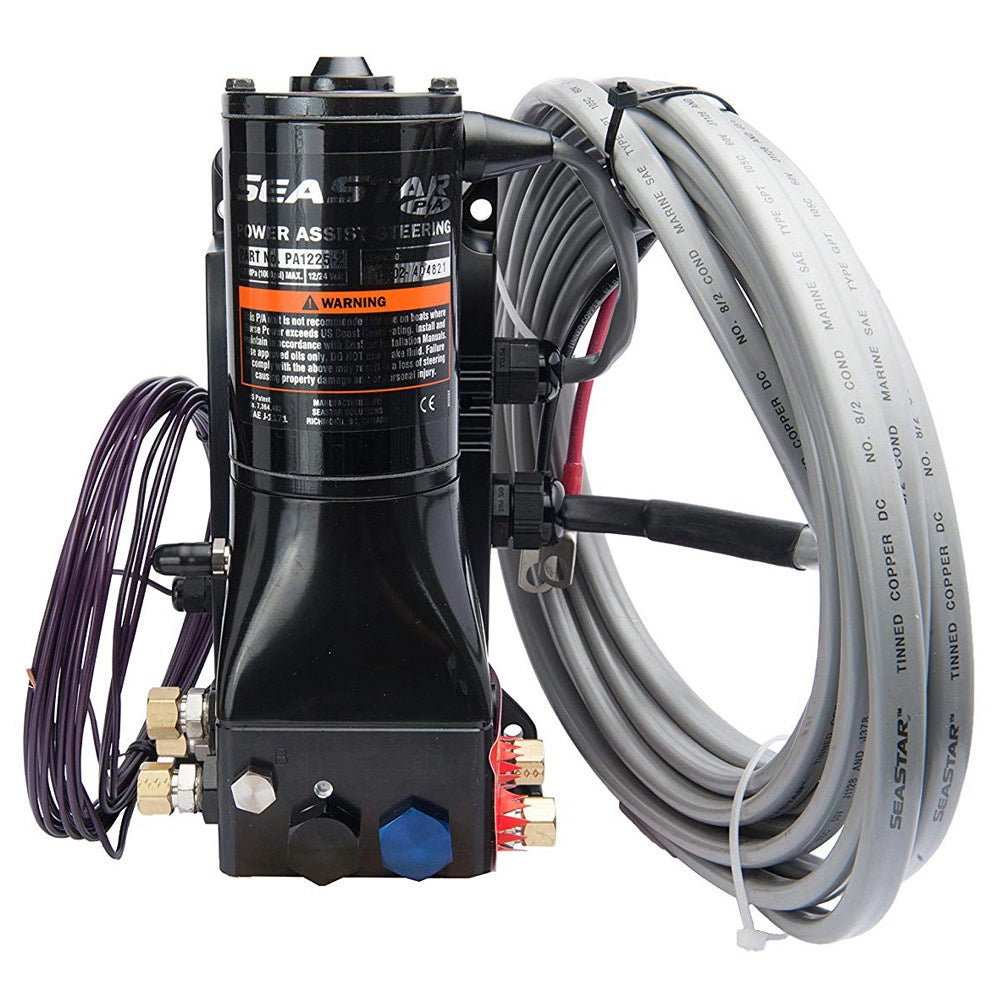

SeaStar Power Assist Steering Pro System 12 24V

SeaStar Power Assist Pro System can be installed on new SeaStar steering installations or as an easy retro-fit to existing systems. Suitable for most boat types, the Power Assist uses an electronically controlled hydraulic pump to provide on-demand power steering.

The system is designed to be easily installed into the hydraulic steering circuit between the helm and steering cylinder. An additional feature allows the Power Assist Pro to adjust automatically to the input voltage from the boats batteries to either 12V or 24V. The SeaStar Power Assist can be used on boats with multiple engines and rudders, multiple steering stations and autopilots.

As a built in safety feature the steering system will automatically return to manual operation without any change to the number of lock-to-lock turns if power to the unit is interrupted for any reason. The SeaStar Power Assist helps eliminate steering loads and provides high levels of comfort and control making boating more pleasurable. The SeaStar Power Assist allows the boat to be driven safely and easily even in the most extreme conditions.

The Power Assist Pro which delivers up to 1500 psi to suit SeaStar Pro helms.

SeaStar Power Assist Pro System Features:

• Dramatically increases steering comfort

• Reduced wheel effort

• Easy installation

• Simple ‘add-on’ to existing SeaStar manual system (up to 2.0cu. in. helms)

• Number of turns lock to lock remains the same

• Compatible with SeaStar Power Purge system

• Compatible with autopilots

• Wiring harness included

• Ignition protected (SAE J-1171)

• Auto recognize system voltage (12V or 24V)

• ABYC, CE, NMMA, ISO 10592 Approved

• Capable of floor or wall mount. No need to purchase extra kits


SeaStar Power Assist Pro System Specifications:

• Part number: PA1315-2

• Input Voltage: 12 or 24VDC (Automatically recognized)

• Max PSI Rating: 1500PSI (500PSI Working Loads)

• Typical Current Draw: ~3 Amps

• Max Current Draw: 50A Max, 60A Peak (1A System electronics)

• Fluid Compatibility: SeaStar Steering Fluid HA5430H or MIL Spec 5606

• Weight: 8lbs

• Harness Length: 15'
