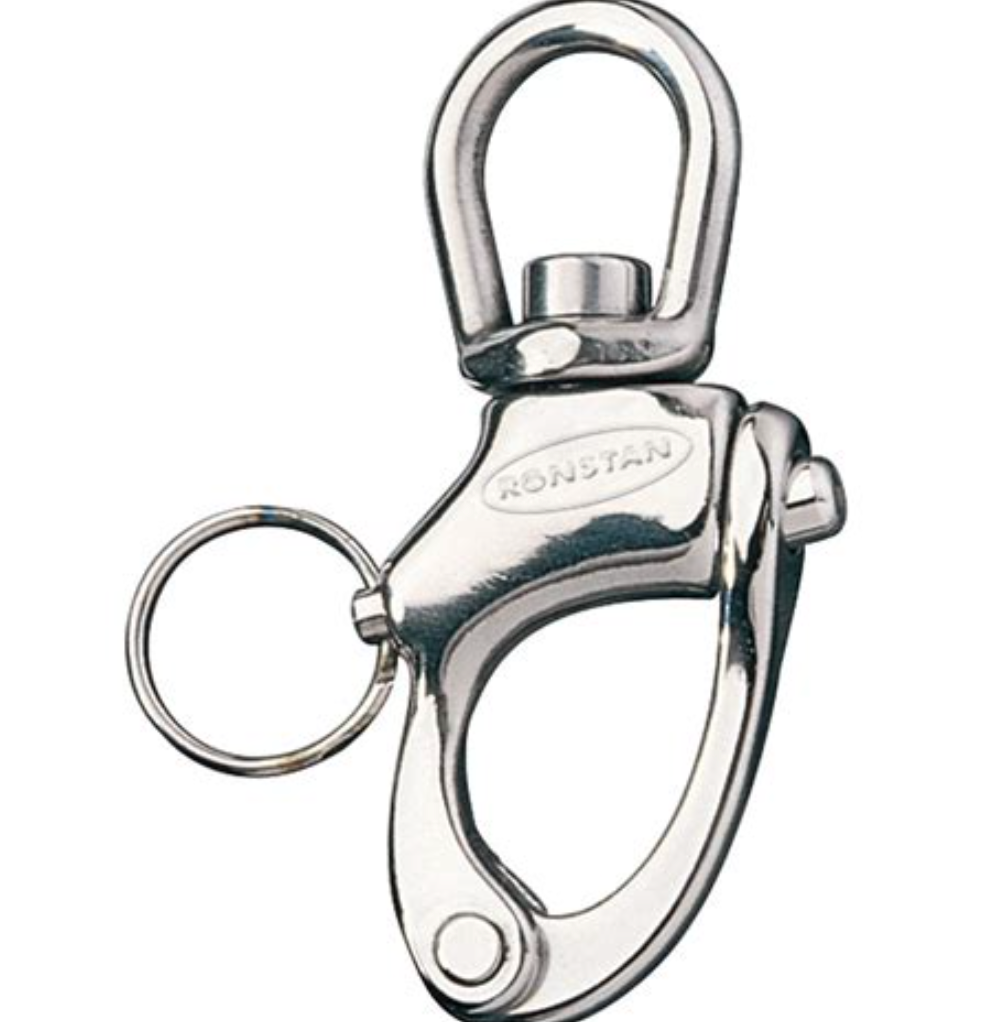

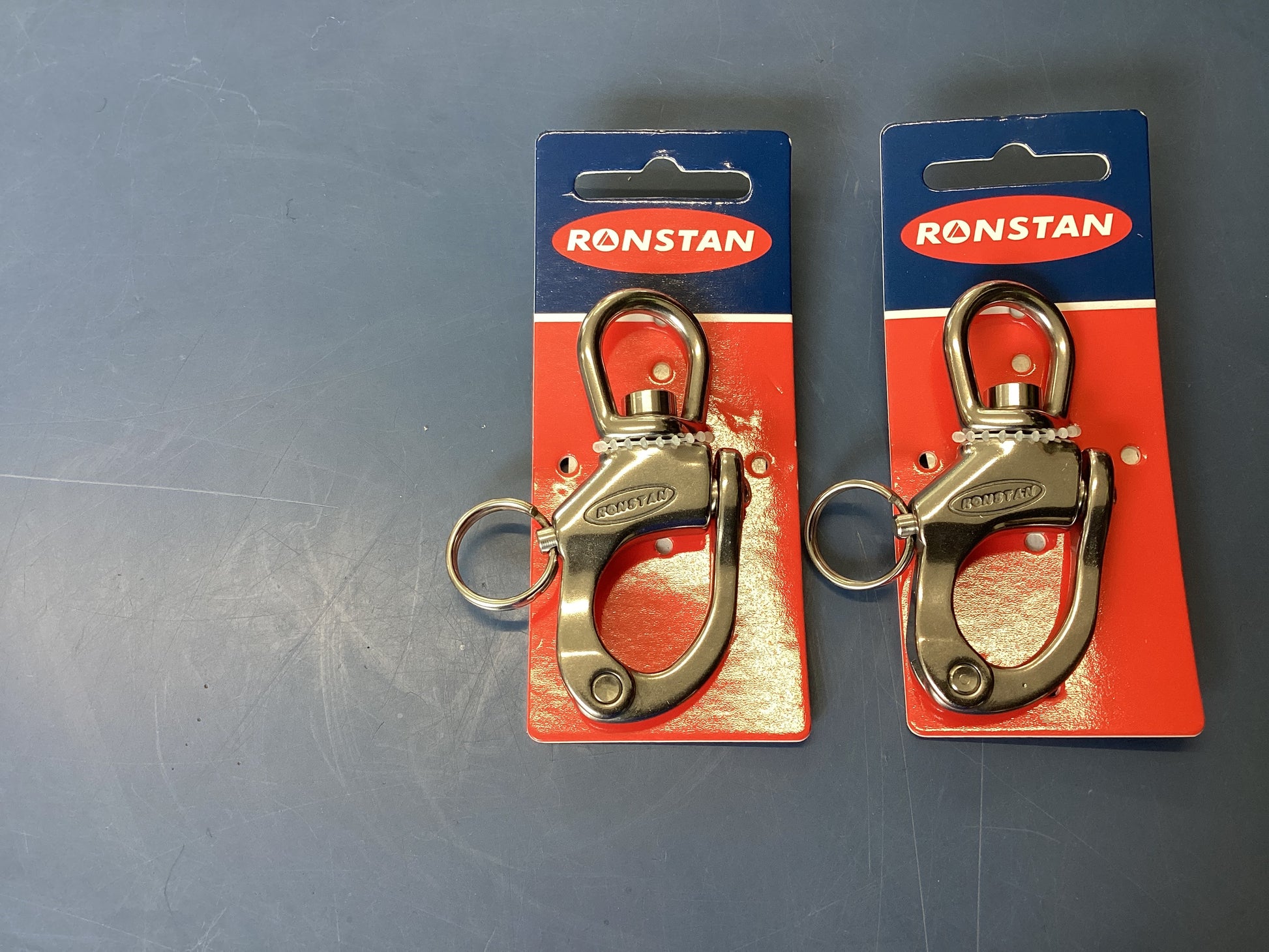

Ronstan RF6120 Snap Shackle Large Bale 73mm

Engineered for demanding marine applications, the RF6120 combines robust construction with user-friendly operation. A heavy-duty plunger spring and precision stainless steel components deliver reliable performance in challenging conditions.

The streamlined body and hasp design ensure smooth clearance of lines and fittings, while the spot-welded split ring maintains secure pin retention. Optional lanyard attachment makes one-handed release effortless. Built from Grade 15-5PH investment-cast stainless steel (body and hasp) and Grade 316 stainless steel (plunger pin and spring), this shackle offers exceptional strength-to-weight performance for sailing, rigging, and marine hardware applications.

Ronstan RF6120 Snap Shackle Large Bale 73mm Features:

• Heavy duty plunger spring

• Quality, precision components

• Designed for easy clearance of lines and fittings

• Spot welded split ring

• Secure

• High strength to weight ratio

• Materials:

  • Grade 15-5PH investment cast stainless steel body and hasp

  • Grade 316 stainless steel plunger pin and spring

Ronstan RF6120 Snap Shackle Large Bale 73mm Specifications:

• A: 16.0 mm

• B: 13.0 mm

• C: 73.0 mm

• M.W.L.: 750 kg

• B. L.: 1500 kg

• Weight: 57 g
