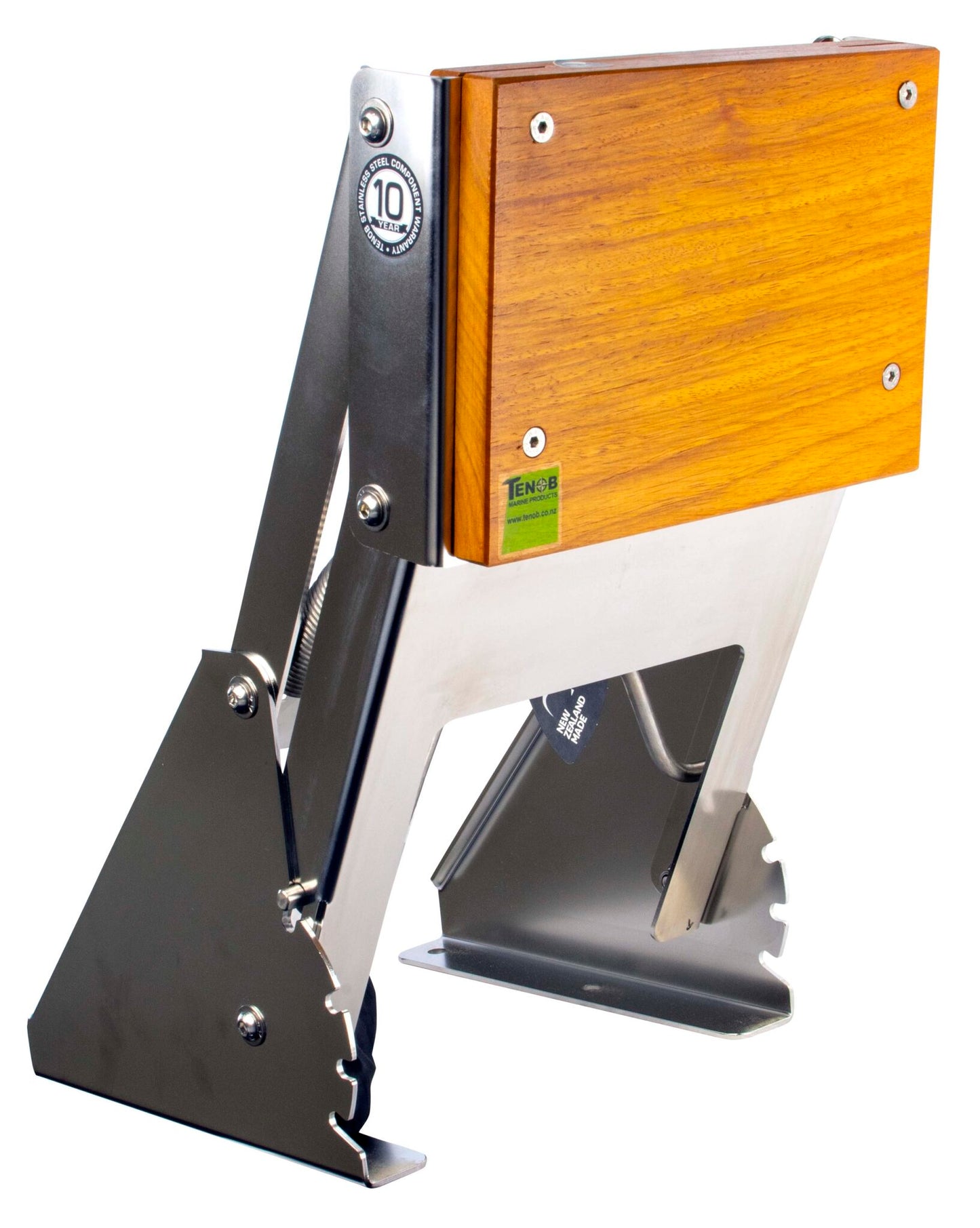

Rise and Fall Platform Axillary Outboard Mount

BoatGear

No reviews

Rise and Fall Platform Axillary Outboard Mount

Rise and Fall Platform Axillary Outboard Mount

$969.99 NZD
$969.99 NZD
Sale Sold out
Pay securely
OU015 – Platform Mount, Rise & Fall

Platform to top of timber – 475mm in raised position, 135mm in lowered position giving a vertical movement (adjustment) of 340mm.
Reach – 350mm.  Overall width (left – right) – 295mm.
Mounting footprint – 263mm (front – back), 280mm wide (left – right) (note that the bracket can overhang the platform up to 100mm, thus reducing the fore – aft space required).
Hole centres – Approximately 152mm vertical x 207mm horizontal.
Timber size – 260mm x 190mm x 35mm.
OU03 spring kit contains 2 large springs, bolts, nuts and washers for model OU01 & OU015. This kit is also used for installing extra springs for heavier outboard lift assistance.

Shipping & Returns

All shipping rates will be added at checkout.

We reserve the right to charge extra for rural delivery, oversized items and high value items to ensure they arrive safe and sound.

Any damaged or incorrect products can be returned to us at the buyers cost and a refund will be issued.
