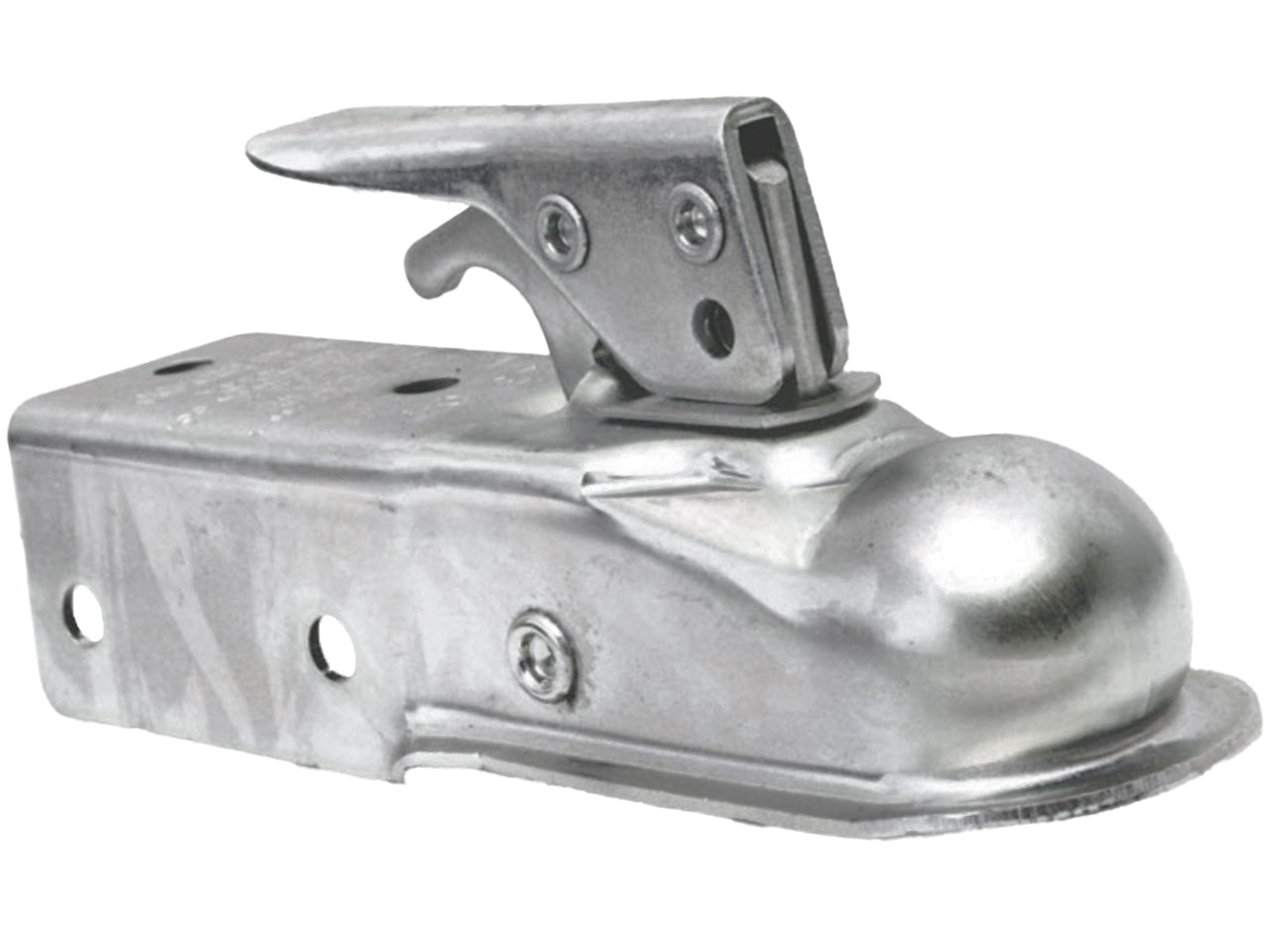

Pressed Steel Coupling - 900kg Capacity - 1 7/8"

Zinc-plated pressed steel coupling built for farming, agricultural, and light trailer use. Rated to 900kg capacity and designed to fit 50mm wide drawbars with secure two-bolt mounting.

The 1 7/8" coupling provides reliable connection for single straight drawbar applications.

Always insert the lock pin through the handle once positioned on the tow-ball to secure the locking mechanism before towing.

Suits 1 7/8” ball
T191006A lock pin must be inserted once the coupling has been positioned on the tow-ball through the handle to secure the locking position.

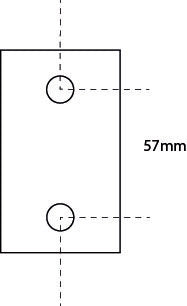

• The bolt holes are to suit 10mm bolts. Fitment should be by way of 2x 10mm high tensile bolts. This coupling will only fit 1 7/8" couplings.
