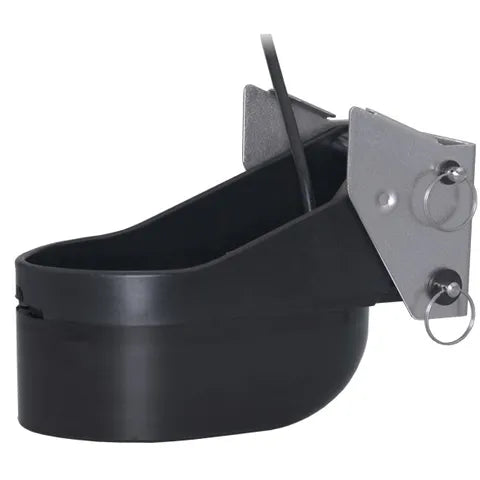

Airmar TM265LH CHIRP 1kW Transom Mount Transducer dual-channel Low / High

The TM265 series is a solid choice when it comes to 1kW CHIRP transom mount transducers, with 8 internal ceramics and up to 103kHz of total CHIRP range the TM265 offers specific frequencies excel at detecting certain species of fish

This powerhouse transducer delivers excellent resolution, bottom discrimination and bait and game fish separation at all depths.
The TM265 is packed with a seven-element, low-frequency array that operates between 42 kHz and 65 kHz for excellent deep-water performance.

The medium frequency ceramic operates between 85 kHz to 135 kHz making this excellent for identifying targets suspended close to the bottom, on structure and within the water column.

The high-frequency ceramic operates between 130 kHz and 210 kHz with a narrow (10° to 6°), perfect for pick apart structure and pinpointing tight holding fish in structure.

Features

• Depth and fast-response water-temperature sensor
• 1kW power for great deep-water performance to 3000’ (914m)
• Urethane transom transducer with a stainless-steel bracket for installation on boats of all propulsion types
• Recommended boat size: Up to 32' (10m)
• Hull Type: Fiberglass, wood, aluminium or steel
• Interfaces to any compatible CHIRP Sounder with CP450c connector
• Also available in thru-hull (B265), pocket/keel mount (PM265), cavity mount (CM265), and in-hull (M265) models
• Comes with a Garmin 12 pin orange connector but can be adapted to work with Simrad, Furuno and Humminbird Apex with the correct adapter box/cable
