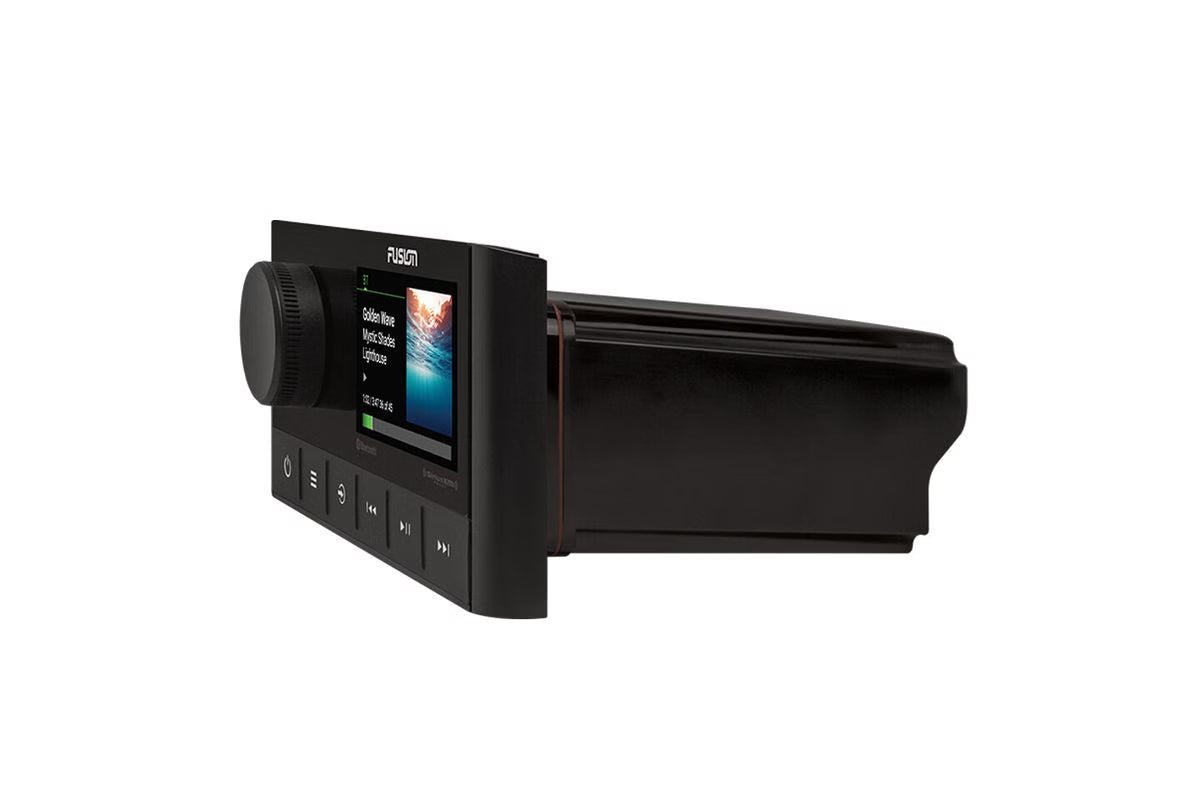

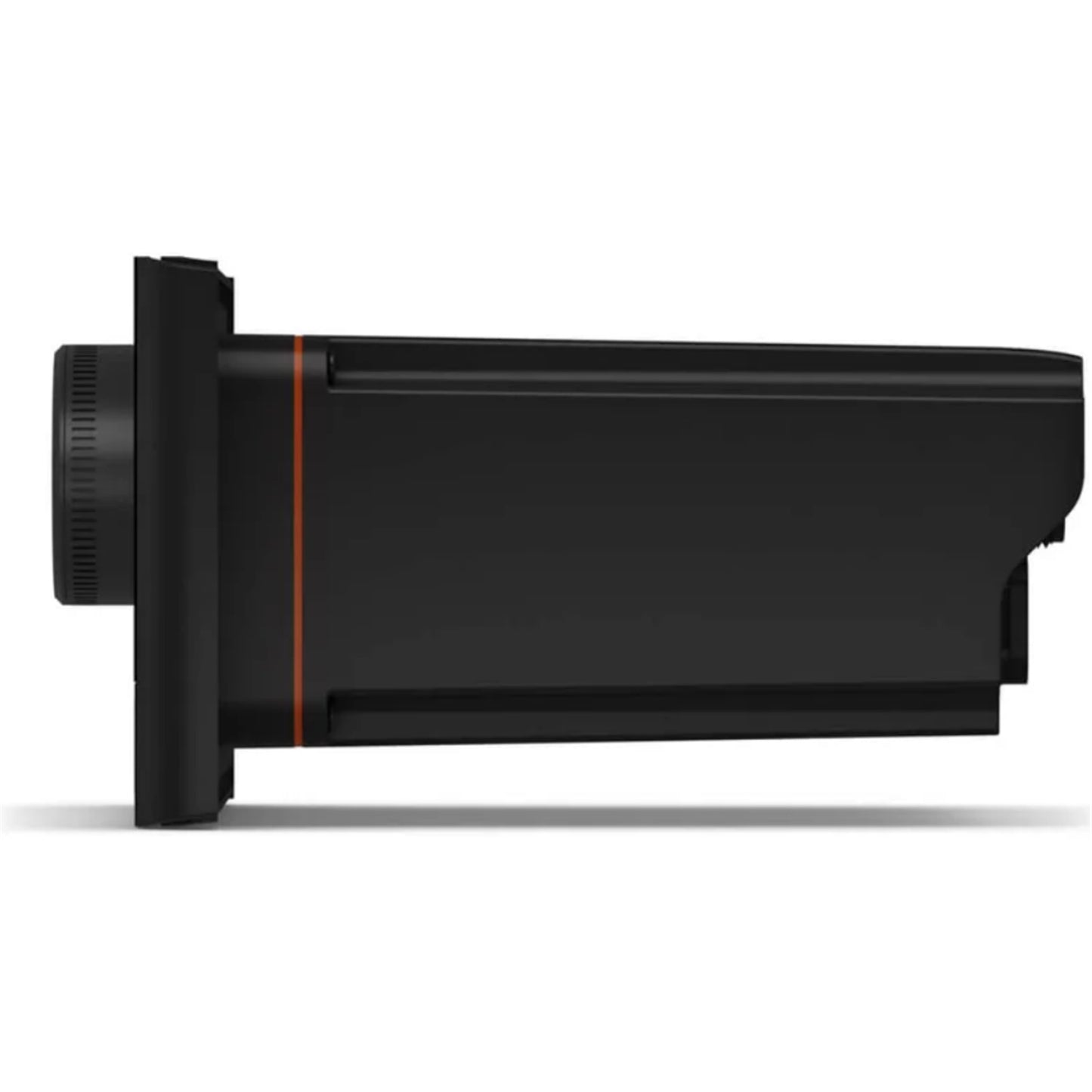

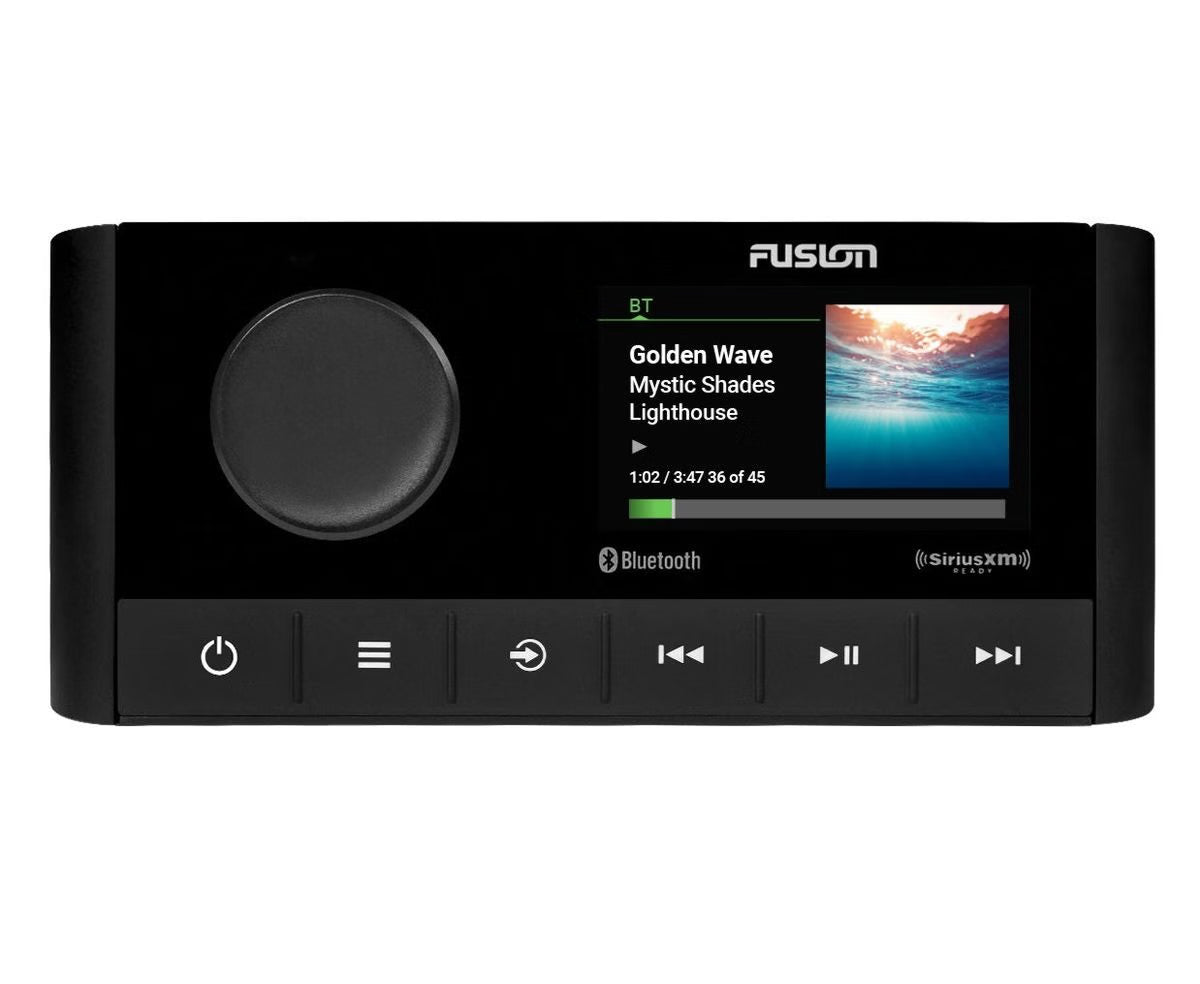

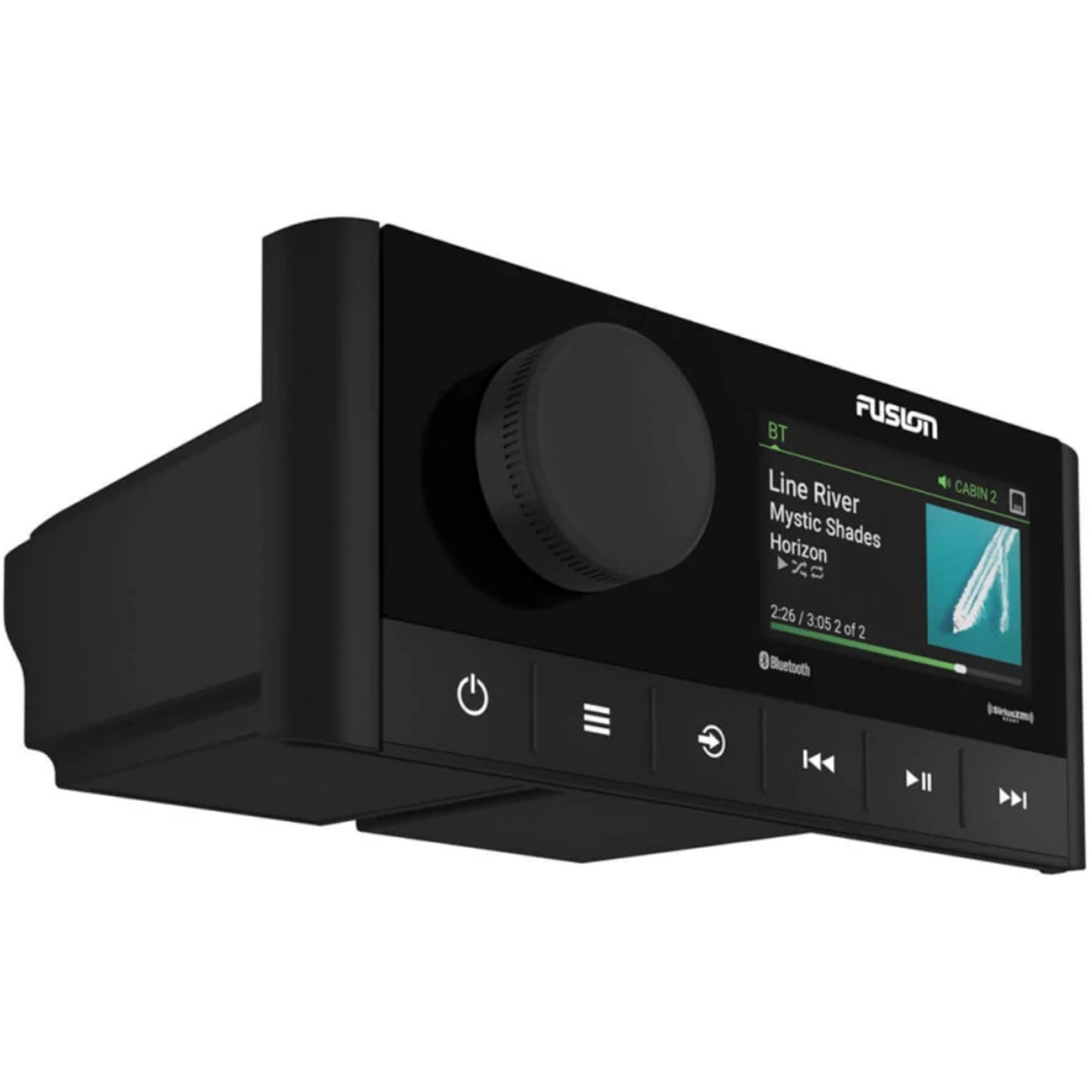

MS-RA210 – Compact Marine Bluetooth Stereo
The MS-RA210 features Fusion's new-look design aesthetics and revolutionary Digital Signal Processing technology for optimized listening in any environment.
Black front facia blends seamlessly with your dash, complementing other electronics and MFDs for a tidy, uniform and elegant installation to provide uniformity across the helm.
Digital Signal Processing (DSP): A technically superior listening experience made simple, Fusion's DSP produces superior sound quality in every environment, at every volume level. The power is in the real time optimization and processing of the audio signal matched with the revolutionary technology built into our products. The built-in DSP chip monitors the music playing and adjusts loudness curves for quality audio at every volume level, while the feed-forward limiter anticipates a peak in the audio and adjusts the gain to make distortion, a thing of the past. Using environmental information and acoustically designed Fusion speaker, subwoofer and amplifier profiles, you can enjoy customized, optimized audio in any area on your boat.
Multiple Source Options: Bluetooth, AM/FM radio, iPhone/iPod, MTP, SiriusXM and DAB+ radio available, USB and AUX connections ready at your fingertips.
Waterproof: IPX6 and IPX7 Ingress Protection: Designed and engineered for the harsh marine environment
Fusion-Link™: The industry standard protocol for on-water audio integration and control, Fusion-Link enables control of your entertainment directly from partnered Multi-Function Displays, compatible Apple or Android devices via the Fusion-Link app, and Garmin watches via Fusion-Link Lite. With multiple control options, no matter what you are doing on your boat, you can always be in control of your audio entertainment.
Multi-Zone™ Technology: Two independent audio zones are available for a customized listening experience on your vessel, each with advanced localized menu controls including volume limits, zone naming, disabling zones and more. Note: Subwoofer and full range line outs require additional amplification.
General
Physical dimensions (H x W x D)
68 x 157 x 126.6 mm
Weight
350 g
Water rating
IPX6 and IPX7 (front panel only, when properly installed)
Power input
10.8-16 VDC
Operating temperature range
0° to 50° C
Current (max.)
15 A
NMEA 2000® LEN1
(50 mA)
Bluetooth wireless range
Up to 30 ft. (10 m)
ANT wireless range
Up to 10 ft. (3 m)
Wireless frequencies/protocols
Bluetooth 2.4 GHz @ +12 dBm nominal
ANT 2.4 GHz @ +7 dBm nominal
Compass-safe distance
150 mm
Stereo features
Display
2.7" optically bonded colour LCD
Built-in amplifier
Class-D (minimum 4 Ohm impedance)
Peak power
180 W
Rated power output (4 Ohm)
26 W rms x 4 @ 14.4 V input < 10% THD
Built-in Digital Signal Processing
Yes (with preconfigured DSP profiles)
Fusion-Link™ control
Yes (with MFD, smartphone and Garmin watch)
Multi-Zone™ technology
2 zones
Bluetooth wireless technology
Yes
ANT wireless technology
Yes
DAB+
Yes (DAB tuner built in)
Multi-language interface
Danish, Dutch, English, Finnish, French, German, GreekItalian, Japanese, Korean, Norwegian, Polish,Portuguese (BR/PT), Slovenian, Spanish, Swedish,
Software updates
USB
Sources
Sources
AM / FM / Bluetooth / USB audio / iPhone / iPod / AUX x1 /MTP / DAB+ ready (available inEurope and Australia only)
Connectivity
Auxiliary input
One RCA input (AUX)
NMEA 2000
One NMEA 2000 port
USB 2.0
One USB 2.0 port
SiriusXM satellite radio
One SiriusXM port (requires SiriusXM Connect vehicle tuner; does not support traffic and weather)
AM/FM radio One Motorola antenna connector port
Speaker
4 x speaker connections (2 amplified zones)
RCA Pre-out (left, right and subwoofer)
2 zones (requires external amplification)
Line out
Zone 1, Zone 2 (L + R, requires external amplification)
Subwoofer out
Zone 1, Zone 2 (requires external amplification)
