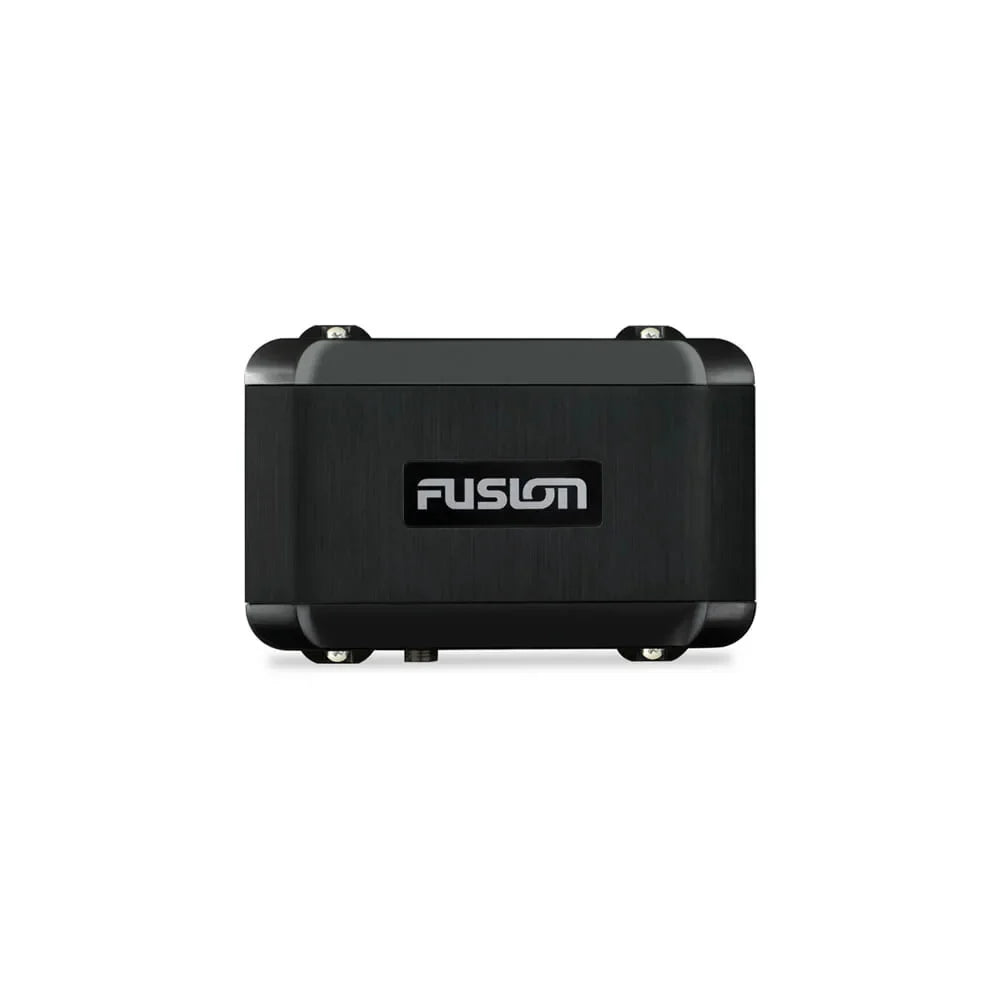

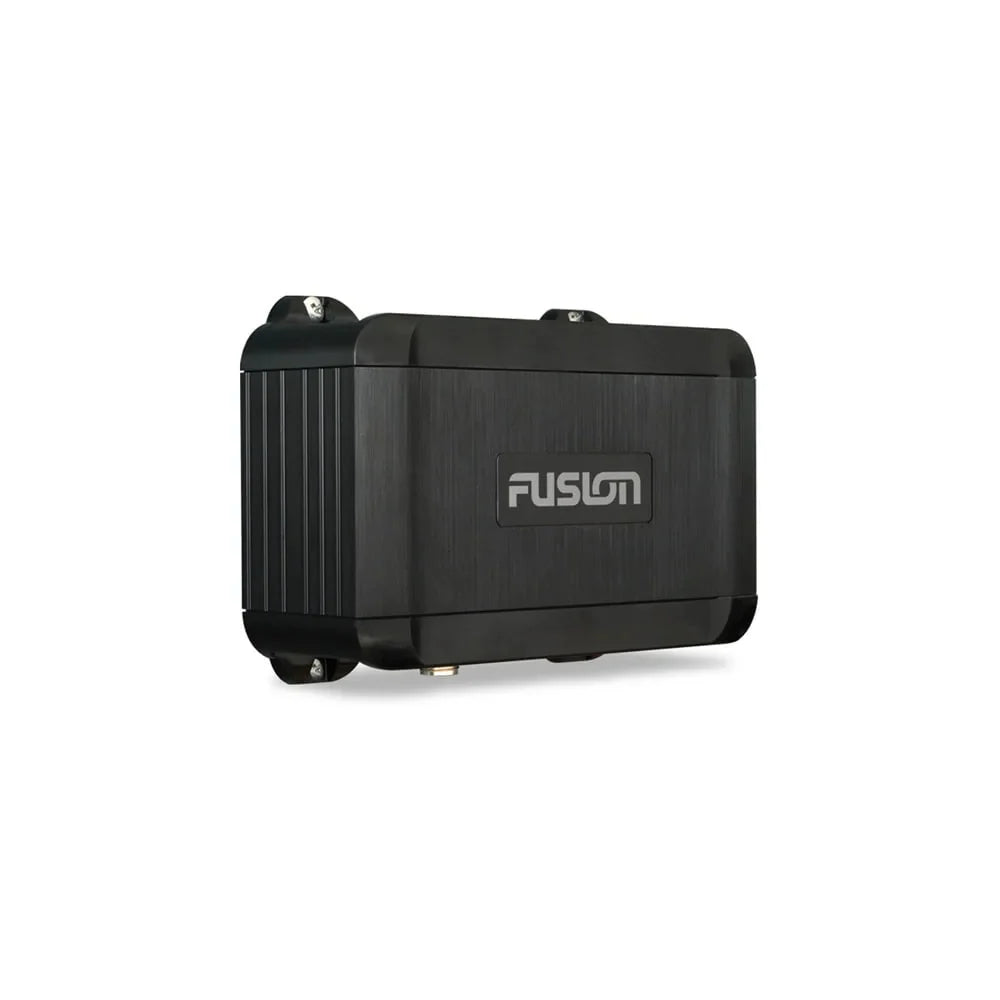

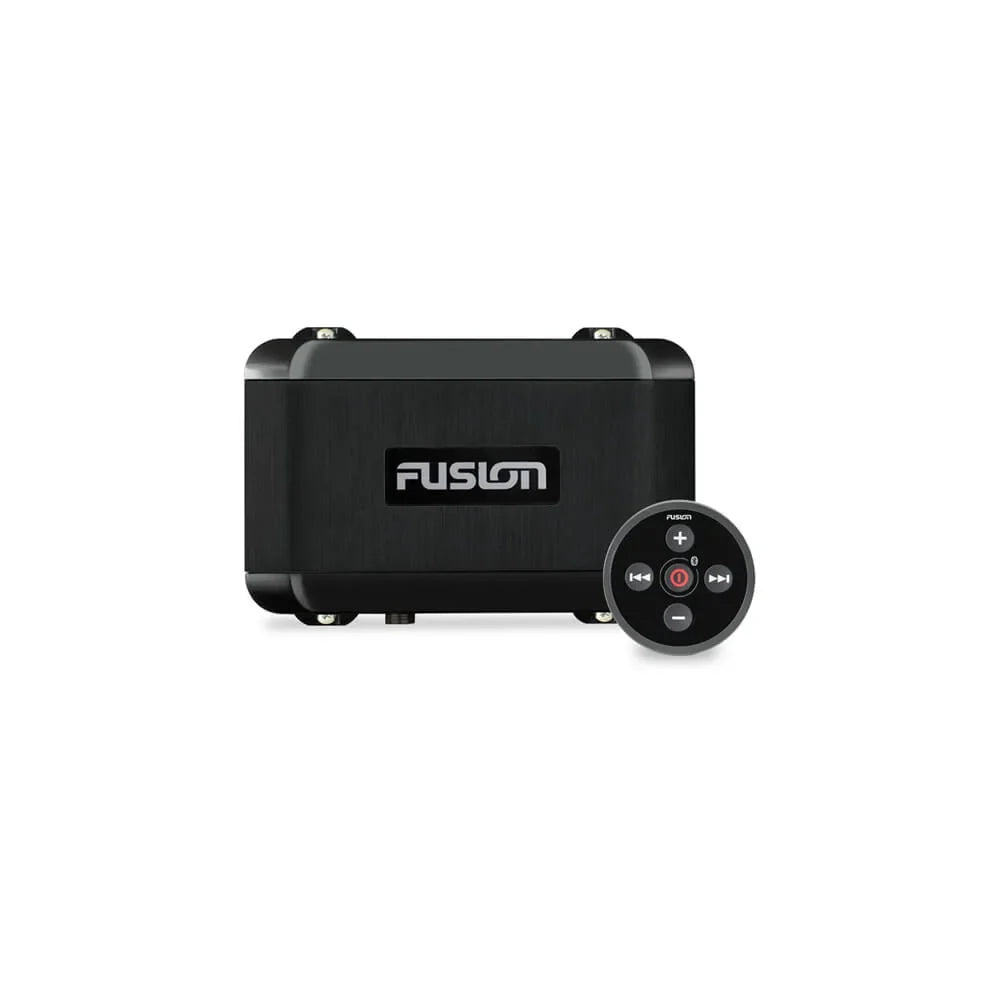

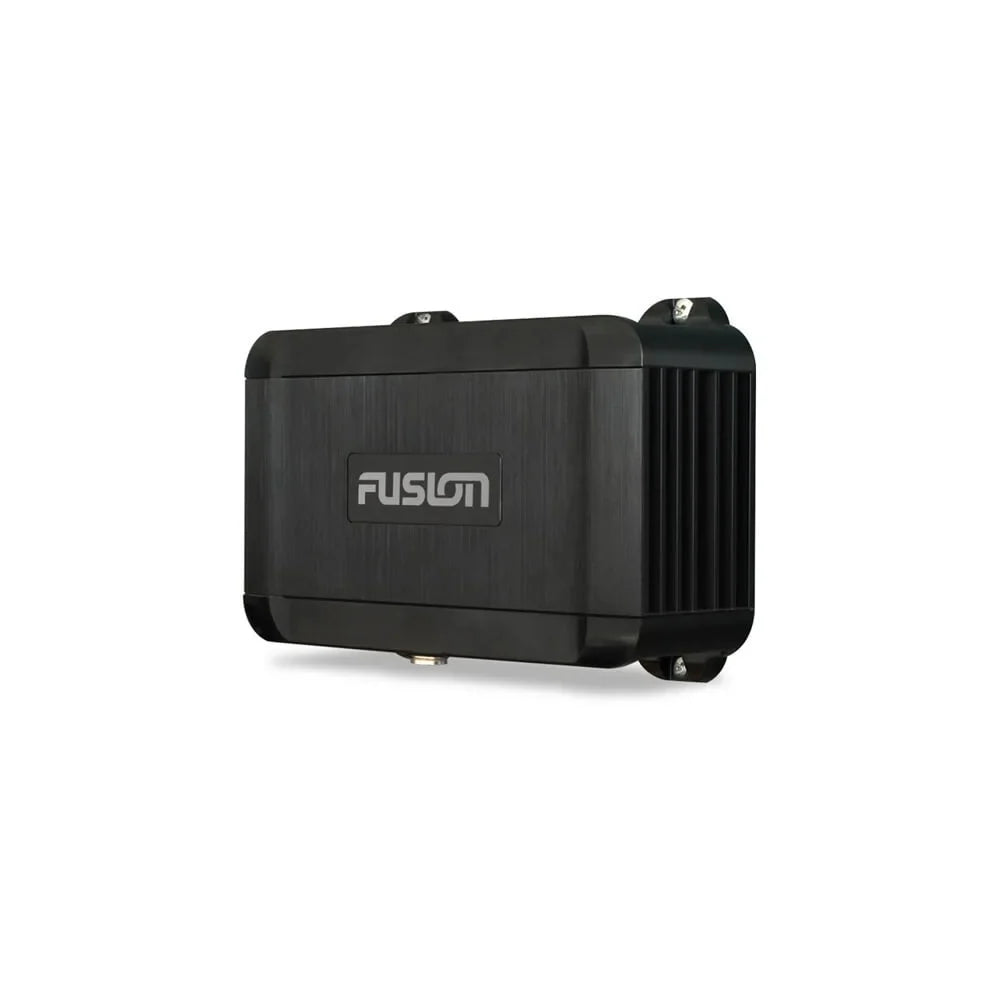

Fusion BB100 Black Box Stereo Black Box System - 010-01517-01

The Fusion MS-BB100 (010-01517-01) Black Box Entertainment System delivers premium marine audio in a compact, discreet package—perfect when helm space is tight but sound quality can't be compromised. This hidden powerhouse keeps your cockpit clean while providing robust audio performance controlled via wired remote, Garmin displays, smartphone, tablet, or smartwatch.

Stream wirelessly with built-in Bluetooth, enjoy crystal-clear sound from a powerful Class-AB amplifier, and manage two independent audio zones separately across your vessel with Multi-Zone™ technology. Seamlessly integrate with your existing marine electronics through Fusion-Link™ and NMEA 2000® compatibility, accessing control via Garmin multifunction displays and the Fusion-Link app.

Choose from AM/FM radio, USB audio, AUX input, and optional DAB+ capability to suit every voyage. Engineered for boats that demand both performance and restraint.

Specifications:

• Model: MS-BB100 Black Box
• Fusion Part Number: 010-01517-01

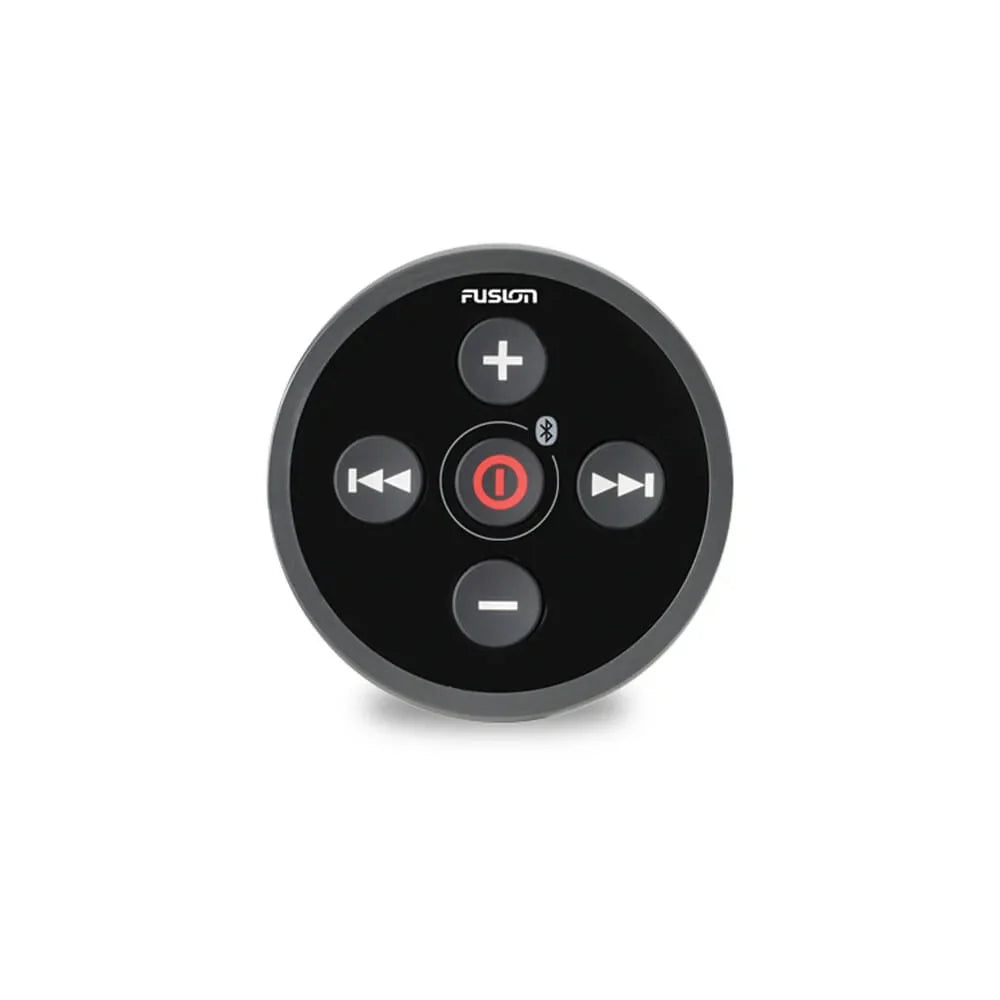

• Display Control: Included Wired Remote
• Black Box Dimensions: 155 × 60 × 94mm
• Remote Dimensions: 65 × 54mm
• Amplifier: Class-AB
• Rated Power Output: 26W RMS × 4 @ 4 Ohms
• Peak Power Output: 200W
• Audio Zones: 2 Independent Zones
• Bluetooth Wireless Range: Up to 10 metres
• ANT Wireless Range: Up to 3 metres
• Sources: AM/FM, Bluetooth, USB, AUX, iPhone/iPod, Android (AOA), DAB+ Ready
• Fusion-Link™: Yes
• NMEA 2000®: Yes
• NRX Remote Compatible: Yes
• Black Box Water Rating: IPX3
• Wired Remote Water Rating: IPX7 (front panel)
• Input Voltage: 10.8–16V DC
• Maximum Current Draw: 15A
• Fuse Rating: 15A
• Operating Temperature: 0°C to 50°C
