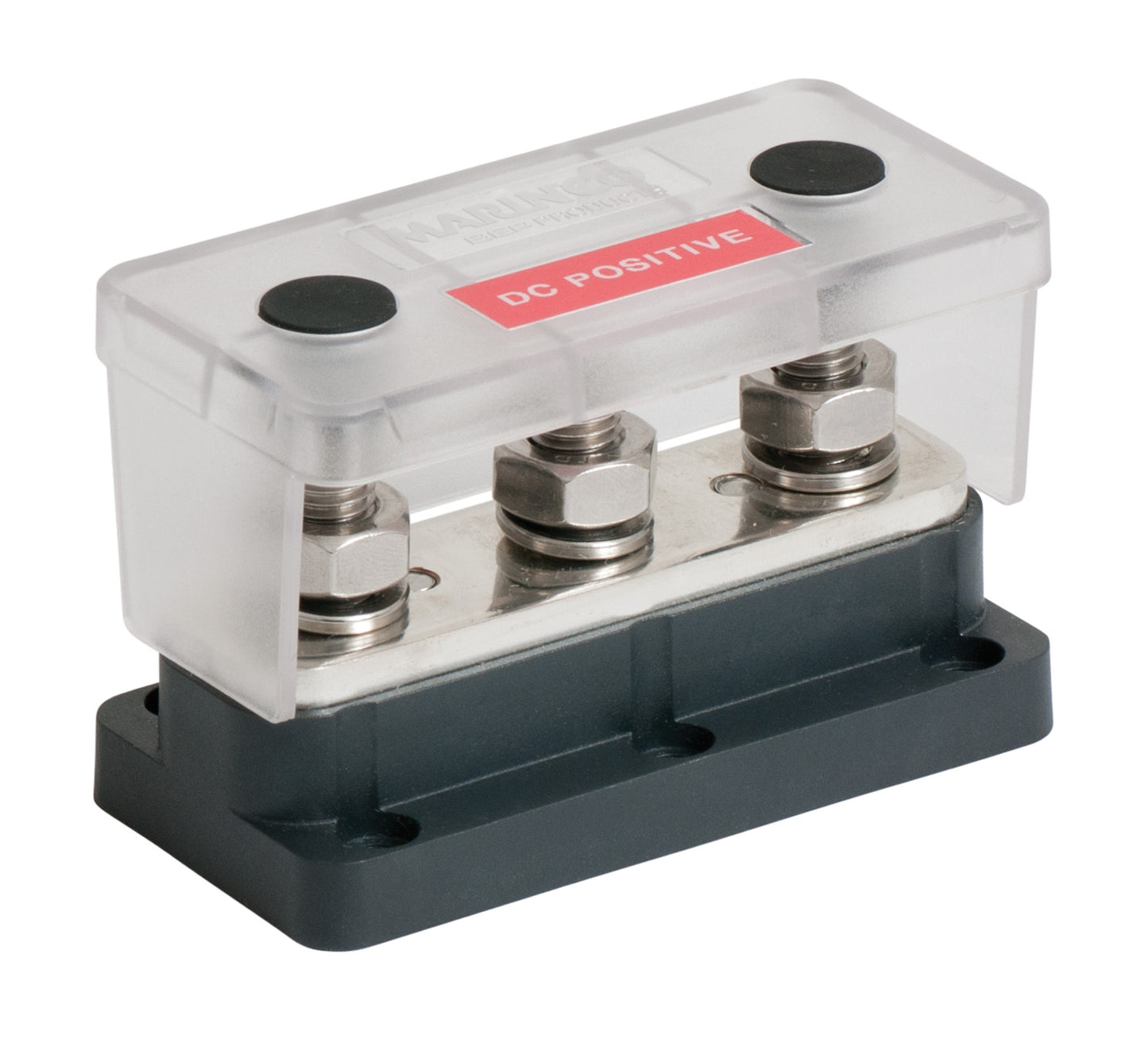

BEP 777-BB3S-650 3x10mm Heavy Duty bus Bar 650A

BEP 777-BB3S-650 is a Pro Installer Heavy-Duty 3-Stud Bus Bar rated for 650 Amps at 50 Volts DC.

It serves as a space-saving connection point for linking large high-current electrical cables, particularly in marine or automotive environments.

• Modular Integration: Shares a common interconnection height with other Pro Installer products, making it easy to link directly to fuse holders or switches.
• Protective Cover: Features a clear, polycarbonate snap-on cover that insulates and protects the connections on three sides.
• Smart Cable Entry: Designed with radius ends to ease cable routing and snap-out side skirts for flexible cable entry angles.
• High Capacity: The extra-long threads accommodate up to four large, stacked cable lugs per terminal stud
• Current Rating: 650A DC maximum
• Voltage Rating: 50V DC maximum
• Stud Configuration: 3 x 10 mm (3/8") stainless steel studs
• Conductor Material: Tinned CDA102 Copper
• Hardware Included: Anti-seize lubricated stainless steel studs, washers, and plated brass nuts
