Maxwell/Freedom

No reviews

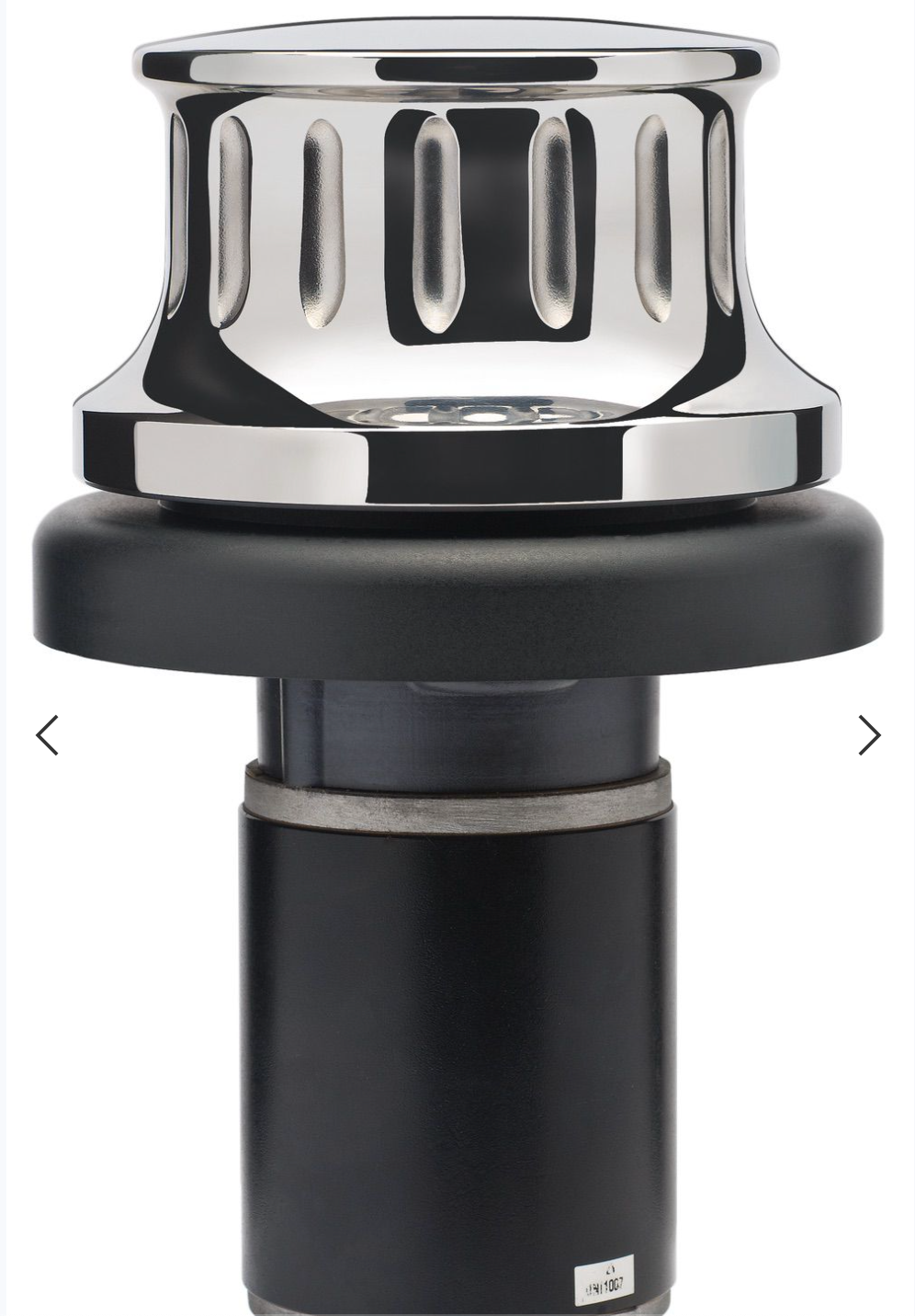

Maxwell Anchormax Capstan Winch 12V with Foot

Maxwell Anchormax Capstan Winch 12V with Foot

Regular price $1,189.99 NZD
Regular price Sale price $1,189.99 NZD
Sale Sold out
Pay securely

Maxwell Anchormax Capstan Winch 12V eliminates the physical strain of manual lifting with a robust electric solution engineered for marine environments.

This versatile 12V winch handles anchoring, pot hauling, and davit applications with equal competence. Constructed from marine-grade alloy and stainless steel for corrosion resistance and durability, it combines functional performance with a refined aesthetic.

The included foot switch provides hands-free operation, making deck work safer and more efficient. Built to withstand saltwater exposure and demanding conditions, this capstan delivers reliable power when you need it most.

  • 850lb of pull
  • 500W motor
  • Ideal for boats from 5-10m
  • Supplied with foot switch, fastenings, template and fitting instructions
  • 3 year warranty
  • Height above deck = 108mm
  • Base diameter = 150mm
  • Max deck thickness = 65mm
  • Depth of unit below deck level = 148mm

The ANCHORMAX™ is not recommended for use to haul chain.

Product Specifications

SPECIFICATIONS
ModelAnchormax

Maximum Pull386kg
850lb

Power12V, 500W

Weight8kg
17.6lbs

Max. Boat Length10m
33'

Max. Boat Weight4 tons

@nominal working load24m/min
75' per min



Cable sizes:
Up to 5m run use 15mm2 cable
5m to 10m run use 25mm2 cable
over 10m run use 35mm2 cable
